⚙️ Technical Compatibility
- Hole Size: Custom to requirements
- Compression Ratio: Tailored to feed formula
Replacement Ring Die for Muyang MUZL 600 (4mm)
Precision Gun Drilling: 4-axis gun drilling guarantees ultra-smooth inner holes, significantly improving pellet quality and output capacity.
Vacuum Heat Treatment: Advanced quenching ensures uniform HRC 52-54 hardness, providing exceptional wear and corrosion resistance.
| material | X46Cr13 Stainless Steel |
| hole size | 4.0 mm |
| compression ratio | 1:8 |
| od | 600 mm |
| lifespan | 800-1000 Hours |
Guarantee
Quenched
Shipping
Why Choose Tianyou Spare Parts?
Precision manufacturing for ultimate pelleting performance.
CNC Gun Drilling
Imported 4-axis gun drilling center ensures ultra-smooth inner hole finish (Ra 0.8), reducing blockage and improving pellet quality for consistent feed output.

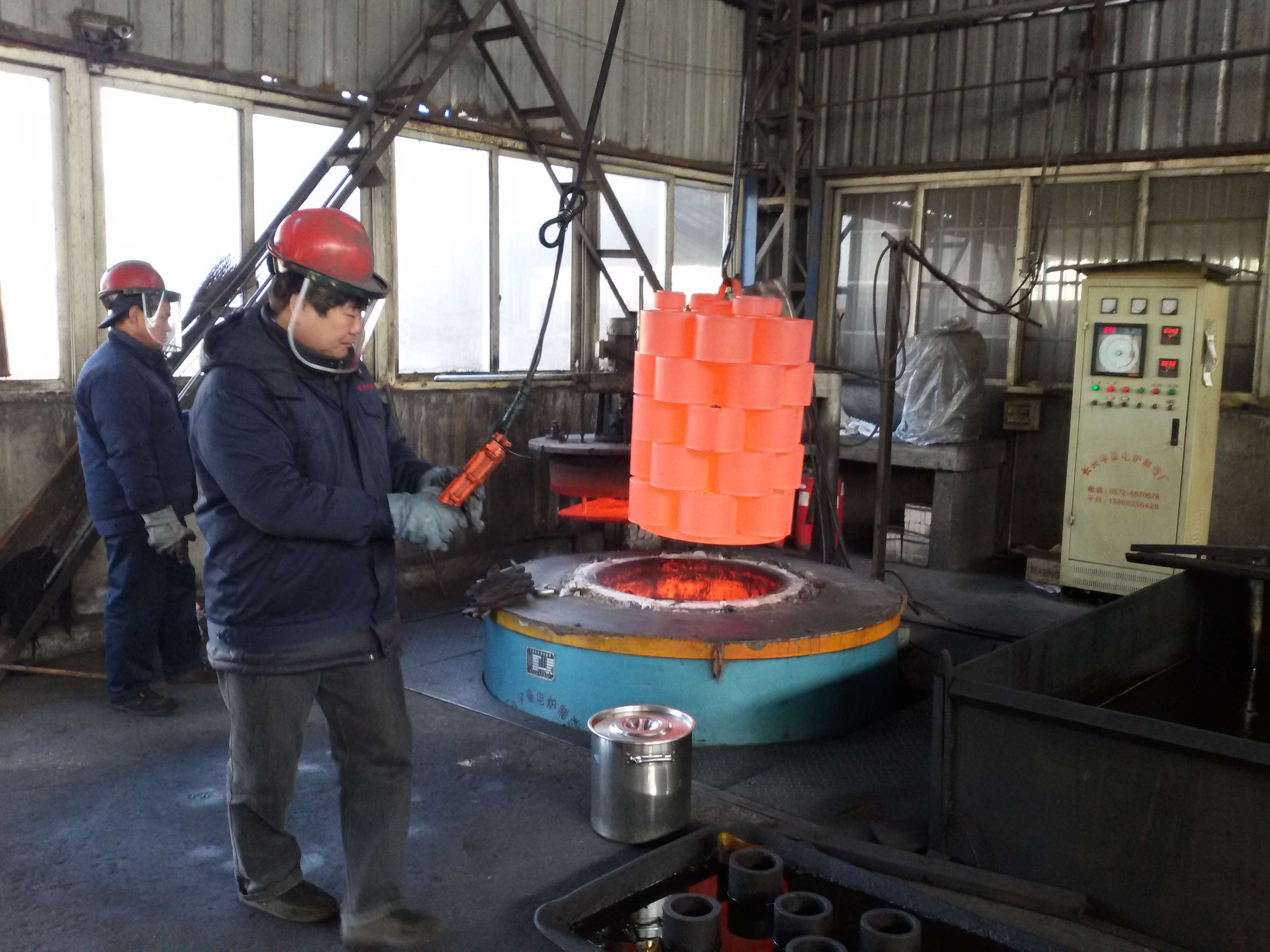

Vacuum Heat Treatment
Computer-controlled vacuum quenching achieves uniform HRC 52-56 hardness throughout the die body, preventing premature cracking under heavy pelleting loads.

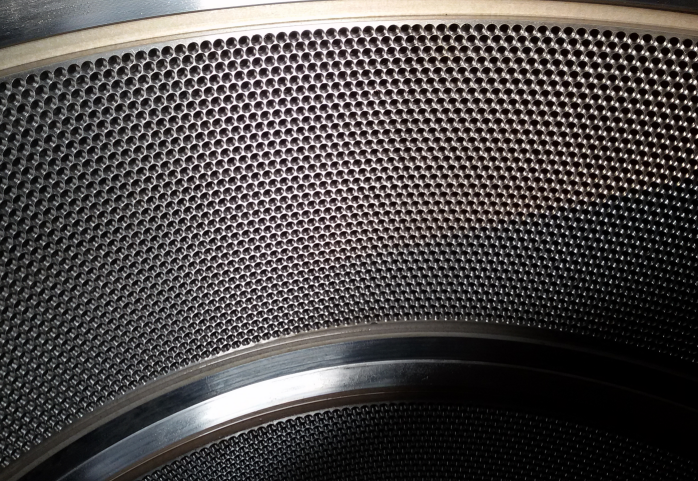

Precision Counter-Sink
Multi-step counter-sinking and chamfering process creates a smooth entry cone for each hole, ensuring consistent feed flow and reduced energy consumption.
Premium Material & Extended Lifespan
Forged from high-grade X46Cr13 (Stainless Steel), our replacement ring dies and roller shells offer superior resistance against corrosion and abrasive wear during high-temperature pelleting. Processed through advanced vacuum heat treatment, we ensure a uniform hardness (typically HRC 52-56), which maximizes output capacity while minimizing the cost per ton of feed produced.
Frequently Asked Questions
Is this ring die fully compatible with the Muyang MUZL 600 pellet mill? ▼
Yes, our replacement ring die is engineered to exact OEM specifications, guaranteeing a 100% seamless fit for Muyang and Famsun MUZL 600 series machines.
What is the expected lifespan of this 4mm poultry feed die? ▼
Under normal operating conditions with standard poultry feed formulations, this X46Cr13 stainless steel die lasts between 800 to 1000 hours thanks to our vacuum heat treatment.
Precision. Hardness. Lifespan.
The Ring Die is the core of any pellet mill. A poor quality die means blocked holes, high energy consumption, and frequent downtime. Tianyou Machinery delivers OEM-quality replacement parts that match the exact specifications of major European and Chinese brands, but at a 30-50% lower cost.
🐟 X46Cr13 Stainless Steel
For Animal / Aqua Feed
- • Hardness: HRC 52-56 (Vacuum Heat Treated).
- • Feature: High corrosion resistance against feed additives.
- • Finish: Mirror-polished holes for max output.
🪵 20CrMnTi Alloy Steel
For Wood / Biomass
- • Hardness: HRC 58-62 (Carburized).
- • Feature: Extreme wear resistance for abrasive fibers.
- • Strength: Reinforced geometry to prevent cracking.
Hole Finish
Ra 0.8
Precision Gun Drilling
Hardness
HRC 52-62
Vacuum Heat Treatment
Accuracy
100% Check
Final Quality Inspection
✓ Supported OEM Brands
