⚙️ Technical Compatibility
- Hole Size: Custom to requirements
- Compression Ratio: Tailored to feed formula

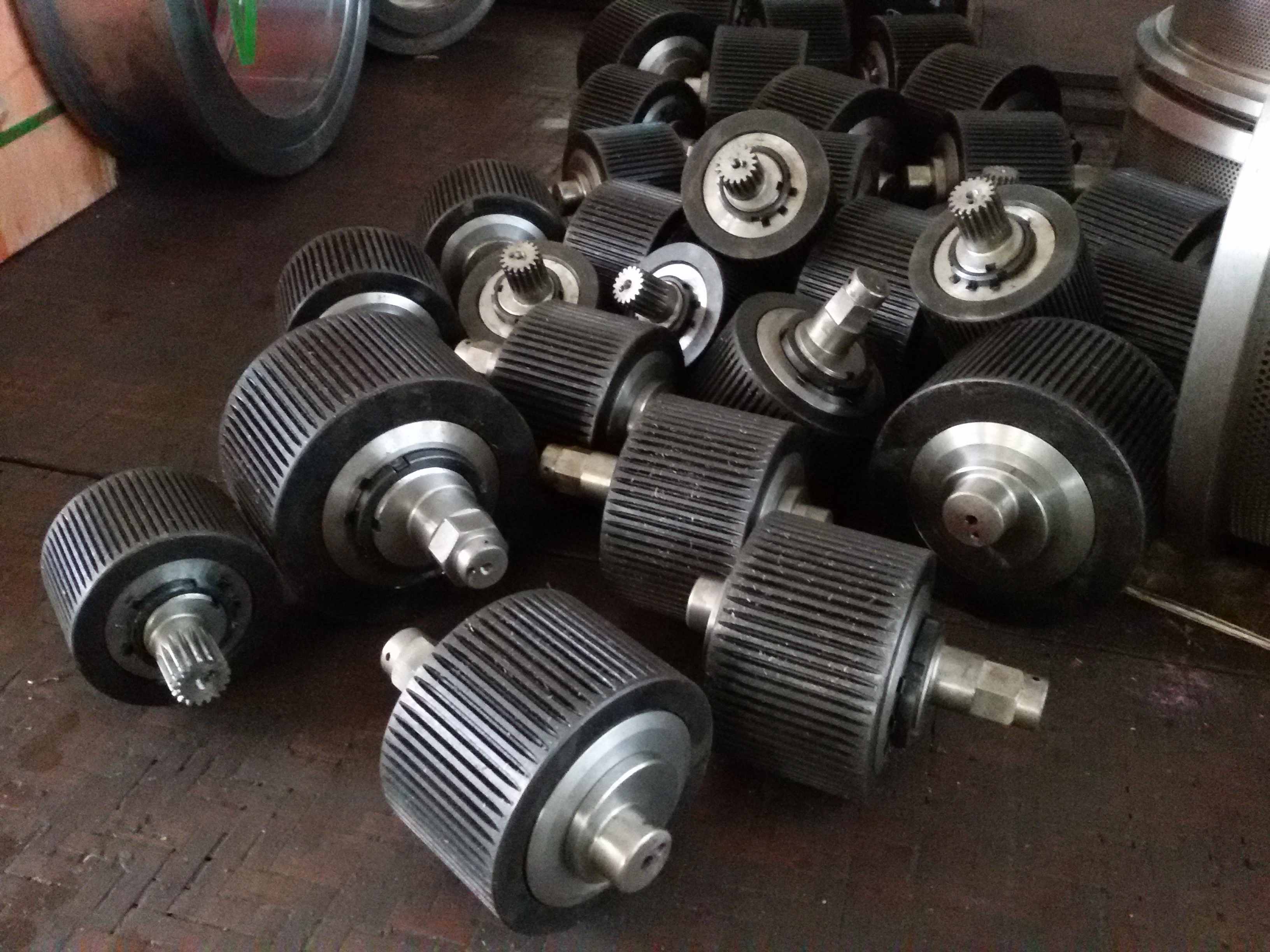

CPM 7730 Roller Assembly for Feed Pellet Mills
Case-Hardened Construction: 20CrMnTi alloy steel is case-hardened to HRC 58-62 on the working surface while maintaining a tough core to resist impact loads.
Complete Assembly: Includes shaft, bearings, and seals ready for direct installation. No additional components required.
| material | 20CrMnTi Alloy Steel |
| surface hardness | HRC 58-62 |
| core hardness | HRC 35-45 |
| feature | Case-Hardened / High Wear Resistance |
Guarantee
Quenched
Shipping
Why Choose Tianyou Spare Parts?
Precision manufacturing for ultimate pelleting performance.
Precision Assembly
Each roller assembly is balanced and pre-loaded with premium bearings and seals, ensuring smooth rotation and zero wobble under maximum pelleting pressure.
High-Traction Surface
Corrugated or dimpled roller shell surface grips raw material effectively, reducing slip and increasing throughput for both feed and biomass applications.
Sealed Bearing System
Double-lip sealed bearings protect against dust and steam ingress, extending bearing life and reducing maintenance downtime in harsh pelleting environments.
Premium Material & Extended Lifespan
Forged from high-grade 20CrMnTi (Alloy Steel), our replacement ring dies and roller shells offer superior resistance against corrosion and abrasive wear during high-temperature pelleting. Processed through advanced vacuum heat treatment, we ensure a uniform hardness (typically HRC 52-56), which maximizes output capacity while minimizing the cost per ton of feed produced.
Frequently Asked Questions
What is included in the roller assembly? ▼
Our roller assembly includes the roller shell, shaft, bearings, seals, and all mounting hardware ready for direct installation.
How often should I replace the roller assembly? ▼
Roller assemblies typically need replacement every 600-800 hours depending on feed formulation and operating conditions. Inspect regularly for wear grooves.
Precision. Hardness. Lifespan.
The Ring Die is the core of any pellet mill. A poor quality die means blocked holes, high energy consumption, and frequent downtime. Tianyou Machinery delivers OEM-quality replacement parts that match the exact specifications of major European and Chinese brands, but at a 30-50% lower cost.
🐟 X46Cr13 Stainless Steel
For Animal / Aqua Feed
- • Hardness: HRC 52-56 (Vacuum Heat Treated).
- • Feature: High corrosion resistance against feed additives.
- • Finish: Mirror-polished holes for max output.
🪵 20CrMnTi Alloy Steel
For Wood / Biomass
- • Hardness: HRC 58-62 (Carburized).
- • Feature: Extreme wear resistance for abrasive fibers.
- • Strength: Reinforced geometry to prevent cracking.
Hole Finish
Ra 0.8
Precision Gun Drilling
Hardness
HRC 52-62
Vacuum Heat Treatment
Accuracy
100% Check
Final Quality Inspection
✓ Supported OEM Brands
* Disclaimer: Tianyou Machinery is an independent manufacturer of premium aftermarket replacement parts. Any reference to original equipment manufacturer (OEM) brand names, trademarks, or machine models (such as CPM, Buhler, Muyang, Zhengchang, etc.) is strictly for the purpose of identifying compatibility. We are not affiliated with, sponsored by, or endorsed by these manufacturers.
