⚙️ Technical Compatibility
- Hole Size: Custom to requirements
- Compression Ratio: Tailored to feed formula
Biomass Matrix for Andritz LM26 / PM30
High Pressure Resistance: Reinforced blank thickness ensures the matrix won't crack under the extreme pressure of industrial biomass pelleting.
Andritz Matador Compatible: Precisely engineered to fit Andritz LM26 and PM30 series biomass pellet mills perfectly.
| material | High Alloy Steel |
| hole size | 8.0 mm (Industrial Pellet) |
| compression ratio | 1:4.5 (Softwood) |
| hardness | HRC 58-60 |
| feature | Gun-drilled Holes |
Guarantee
Quenched
Shipping
Why Choose Tianyou Spare Parts?
Precision manufacturing for ultimate pelleting performance.
Deep Carburization
Advanced carburizing heat treatment achieves HRC 58-62 surface hardness while maintaining a tough inner core, providing extreme wear resistance against abrasive wood fibers.
CNC Gun Drilling
Precision gun-drilled holes with controlled geometry ensure consistent pellet density and maximum throughput for hardwood and softwood biomass pelleting.

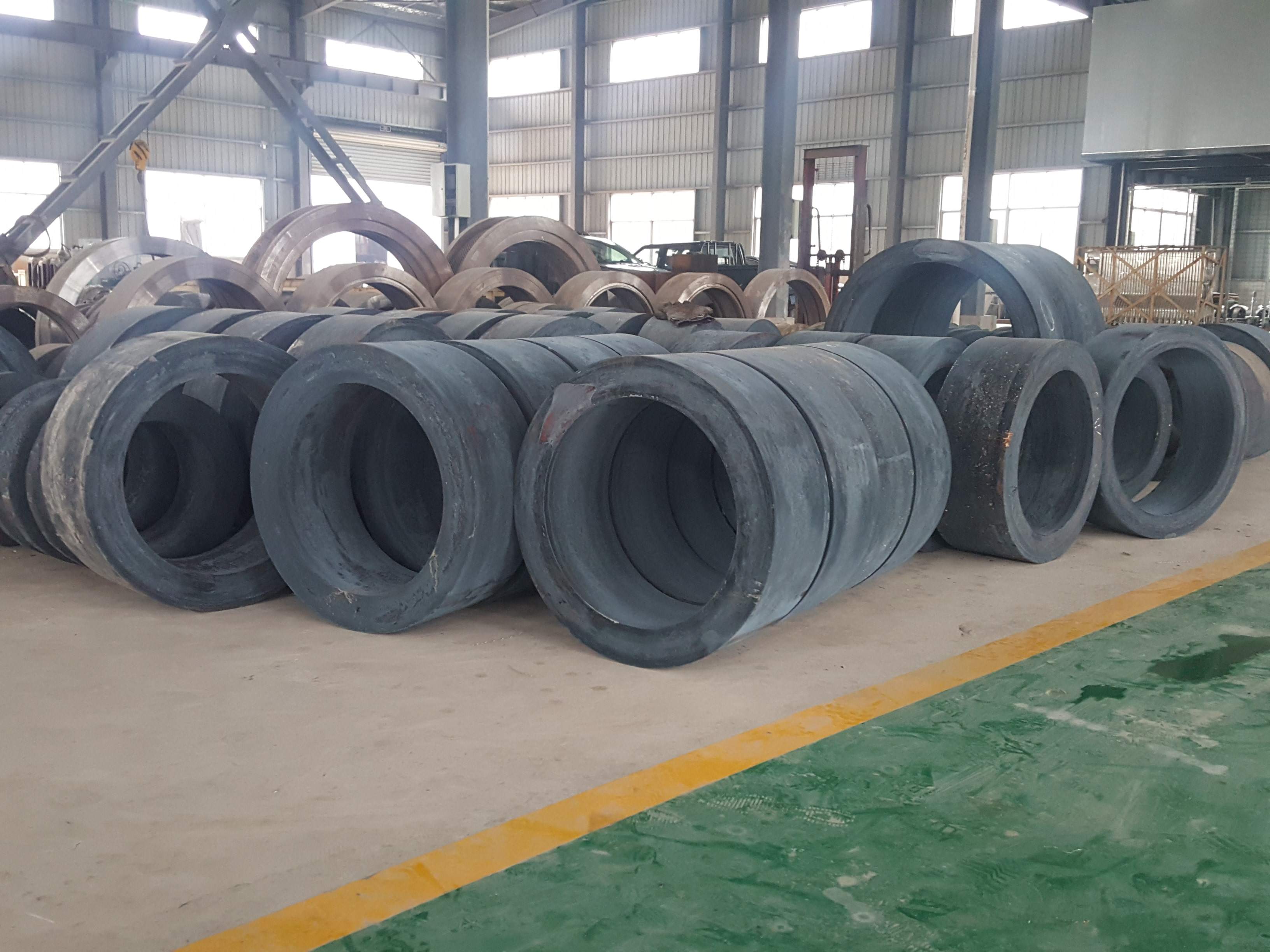

Reinforced Blank Forging
High-pressure forged blanks eliminate internal metallurgical defects, preventing catastrophic die failure during high-pressure biomass compression.
Premium Material & Extended Lifespan
Forged from high-grade High Chrome Alloy, our replacement ring dies and roller shells offer superior resistance against corrosion and abrasive wear during high-temperature pelleting. Processed through advanced vacuum heat treatment, we ensure a uniform hardness (typically HRC 52-56), which maximizes output capacity while minimizing the cost per ton of feed produced.
Frequently Asked Questions
Is this matrix suitable for 8mm industrial wood pellets? ▼
Yes, this matrix is gun-drilled with 8mm holes and a custom compression ratio tailored for industrial sawdust and biomass pellet production.
Does this fit the Andritz Sprout PM30? ▼
Absolutely. Our replacement matrix is manufactured to accurately match the mounting dimensions of both Andritz LM26 and PM30 equipment.
Precision. Hardness. Lifespan.
The Ring Die is the core of any pellet mill. A poor quality die means blocked holes, high energy consumption, and frequent downtime. Tianyou Machinery delivers OEM-quality replacement parts that match the exact specifications of major European and Chinese brands, but at a 30-50% lower cost.
🐟 X46Cr13 Stainless Steel
For Animal / Aqua Feed
- • Hardness: HRC 52-56 (Vacuum Heat Treated).
- • Feature: High corrosion resistance against feed additives.
- • Finish: Mirror-polished holes for max output.
🪵 20CrMnTi Alloy Steel
For Wood / Biomass
- • Hardness: HRC 58-62 (Carburized).
- • Feature: Extreme wear resistance for abrasive fibers.
- • Strength: Reinforced geometry to prevent cracking.
Hole Finish
Ra 0.8
Precision Gun Drilling
Hardness
HRC 52-62
Vacuum Heat Treatment
Accuracy
100% Check
Final Quality Inspection
✓ Supported OEM Brands
* Disclaimer: Tianyou Machinery is an independent manufacturer of premium aftermarket replacement parts. Any reference to original equipment manufacturer (OEM) brand names, trademarks, or machine models (such as CPM, Buhler, Muyang, Zhengchang, etc.) is strictly for the purpose of identifying compatibility. We are not affiliated with, sponsored by, or endorsed by these manufacturers.
